An obvious condition for a firefly system to work is the availability of a suitable water source. Still this is a difficult thing to judge, important aspects are:

1. Whether the flow (quantity of water flowing through it in liters/second) observed at a certain moment in a certain creek would be enough to drive a charger.
2. The variation of this flow over the year.
3. The difficulties in getting this water to a site where the charger could be placed.

The above points are limited to physical conditions, as if one could just select the most advantageous site from a technical point of view and then start digging and building. But there are people living there who all have their ideas, plans and rights:

4. Installing a firefly charger should not conflict with local rights on using the water from a creek and the land through which the canal is dug. Or if some people's interests are affected, an acceptable settlement should be possible.

All above points refer to specific potential sites. When looking at a certain area, a fifth point comes into view:

5. Whether there are so many suitable sites in the area that, in the long run, firefly systems could serve a major part of the population.

These points will be discussed more in detail in annex J: Selecting a site. A thing that comes back with all points is, that asking information from local people could be much better than trying to figure things out by oneself. Especially if local farmers irrigate their crops, they will know quite a lot about water sources in their area. So when it comes to choosing sites, it is probably best to try to explain (or demonstrate) how the firefly system works and leave it to local people to select a site.

The fifth point is especially relevant here:

• If there are many potential sites, in the long run so many chargers could be installed that there is one within walking distance (a few km at most) of a major part of the population. Then a local market could develop for chargers and charge indicators and local production could come off the ground, making the system cheaper and assuring that it can be maintained and repaired in the future. If on the other hand there are only a few potential sites, the impact of the firefly will remain small, chargers will have to be imported and probably only a few richer people will benefit. In that case there is little sense in trying to introduce it at all and it is better to focus on alternatives like solar energy.
• Nearby chargers could serve as back-up for one another in case one charger breaks down or its water source has dried up, see par. 2.3.

This issue should be decided upon in a very early stage and therefor one can not expect much useful information from local people as they will hardly understand what the firefly system is about until they have seen one running.

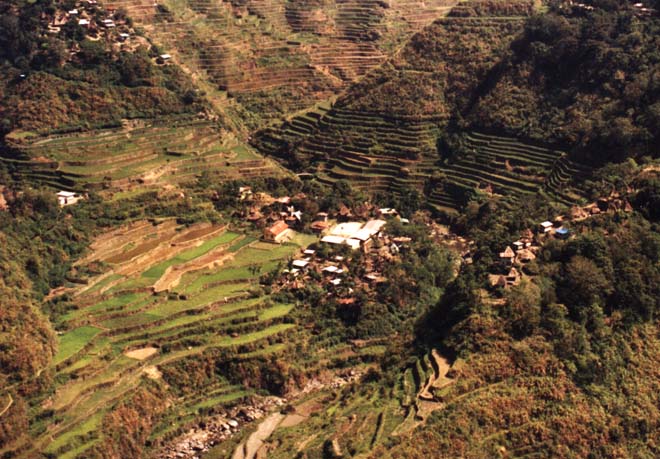

Fig. 3.1: Cambulo, the pilot village of PRRM's Micro Hydro project. To irrigate the rice terraces, there are small irrigation canals and one of them was used for the charger.

Some brief guidelines are:

• The firefly charger needs a flow of up to 8 liters per second (see par. 4.1). If one thinks about rivers and creeks, this is only a tiny amount. But the flow from a spring is definitely too small. To find out what this 8 l/s figure means, imagine there is a 3" pipe connected to the charger and the water inside has a velocity of 1.6 m/s.
• Eventually all water comes from rain so rainfall data are decisive. The total yearly rainfall is less important than its spread over the year. As a rough guideline, dry season should be no more than 3 months.
• Forests on hill tops promote rainwater to seep into the ground and this water will feed creeks and springs. When it rains on eroded land, most water will flow down the slope right away and this run-off water does not contribute to spring flow in dry season.
• If the subsoil is very permeable to water (e.g. sandstone, sand, limestone), water will sink into the soil too easily. Then it will come out again only at a few points deep down in large valleys, and offer few or no suitable sites for the firefly.
• Usually one has to construct a weir and a canal. So conditions making it difficult to build these, affect the possibilities for the firefly:
• Very large creeks or rivers that will damage the weir easily.
• Very steep hill sides that are prone to landslides when one would dig there.
• Hill sides of hard rock make it very laborious to chisel out a canal.
• Hill sides of loose sand or gravel are no good either because of seepage losses and erosion danger.
• If the creek itself flows relatively slow because it has a small slope. Then the canal must be made much longer before there is enough head for the charger.

The guidelines above emphasise the availability of water. But the charger also needs a certain head (= water pressure), so the terrain should be so hilly that sites with enough head can be found. Usually finding such sites is not such a problem because:

• If the land is rather flat, it is better suited for agriculture, more people will live there and it is likely that the area is connected to the national grid or will be connected in the future. The firefly is intended for isolated, mountainous areas where the grid will not come.
• The standard firefly charger needs a minimum head of only 5 m, and the design can be adapted at little extra costs for a head as low as 2 m.
• If the area is relatively flat, a longer canal must be dug. Then also hill sides will not be that steep and rocky, so it will be a bit easier to dig. The need for a longer canal makes that local people will have to put in more labour and that it will cut through more land. But this does not have to mean that the firefly is not feasible there.

See fig. 2.1 for an illustration of typical layout of a firefly charger.

Some general thoughts on whether there could be a need for electric light:

• In many situations it will be a luxury item, meaning that if basic needs like food and housing are not fulfilled, there is no need for electric light.
• The need for electrical light is strongly linked with the educational level. If quite a few people have had some kind of formal education in town, these people will know and appreciate electric light. If there are schools in the community, students will have to do homework at night and teachers have to prepare lessons and correct tests.
• The need for electrical light is also linked with trade and handicraft: Good quality of light allows people to work in the evening.
• Electric light and vaccine refrigeration is important in health care. But if it were for this purpose only, solar systems in clinics would do and there is little need to have electric light in ordinary houses.

Clearly it makes no sense to introduce the firefly in an area where people don't want or don't need electric light. This speaks for a rather passive approach: Only if local people ask for better light, solar systems or Micro Hydro power, one could start thinking about introducing the firefly. On the other hand, people might not even think about whether or not they would like electrical light if they had never realised that electric light might be possible and affordable in their situation. This speaks for a more active approach: Starting a demonstration project and then discussing the pro's and con's of this technology with local people.

There is the risk that local people react enthousiastically to the idea of having a firefly system, but prove much less enthousiastic later on. They might like to have any project implemented in their village rather than in a neighbouring community. They might like project representatives visiting their village. But once it comes to working or paying for materials, they might expect that everything comes for free from the project. This means that one will only know whether they are really interested when they are willing to bear the costs: In labour for building the canal etc. and in money for the charger and the materials for home systems, see also par. 3.4.

Fig. 3.2: Rosita Bentican signs a loan agreement. Materials for the home system were sold on installment basis. Rosita is a teacher so she needs good light at night and earns enough to afford it.

Here, local production means producing firefly chargers in the same province or region, but not necessarily in the communities where they will be installed. Car repair workshops could build chargers while electronics repair workshops could build switchboards and charge indicators. Such workshops will only exist along major roads or in cities.

Local production is important because:

• It forms a guarantee that existing systems can be maintained and repaired in the future.
• It means that eventually firefly systems could be built and installed without help from the outside: The expansion phase (see par. 1.2.)
• It will be a lot cheaper than buying abroad. Also delivery time will be much lower. Only if the firefly is being introduced simultaneously in a few areas in one country, production in bigger series in one or two well-equiped workshops in a major city probably is the cheapest solution. But as long as there is only one area, it seems best to produce them in that area.
• People who build firefly systems, could also adapt it to special wishes. In this way, better suitable designs might crop up in the future.
• It could stimulate the local economy and stimulate a sense of self-reliance

For local production to become possible, the following conditions should be met:

• There are car repair workshops and electronics repair workshops in the area.
• There is the perspective of a sizeable market for chargers and charge indicators. This means that there should be many potential users and enough potential sites.
• Workshop people are interested in building things for poor people in isolated communities. If workshop people are very much orientated to western technology and the capital, they might see mountain people as backward, unable to pay etc. Also if workshop people belong to a different tribe, there might be trouble.
• Materials and parts are available to workshops at decent prices (most parts and materials are widely available, but there could be problems with `solar' batteries and with electronic components).
• There is no unequal competition by a party that sells competing systems at subsidized prices.

Apart from workshops producing firefly chargers and charge indicators, there is a role for traders trading in batteries, cables, switches, lamps etc. Those items form the bulk of the costs of a firefly system so it is important that they are available within the area and at decent prices. Maybe traders will take the lead role in introducing firefly chargers rather than workshops building components.

Social aspects are difficult to discuss in general. Some experiences from the Cambulo project might shed some light on these. Hopefully, this paragraph will raise the right questions and then it is up to readers themselves to find answers.

Some social aspects strongly influence the chances of the firefly being introduced succesfully, assuming that one would decide to try to introduce it.

Willingness to cooperate: The firefly can be used most economically if one charger serves a user group of about 10 families. If people would not want to cooperate or would not be able to cooperate, a user group that owns and manages a charger is out of the question, see par. 2.3.

Existing groups could form the start of a user group and in that case there is no need to try to form a user group right from the start. In Cambulo, a well-run cooperative store took up this role and I think this was the main reason why it proved possible to get the firefly introduced there in only 10 months (see par. 1.1).

If one would like to ask an existing group to serve as a starting point for a user group, the choice of such a group becomes a tricky question. Quite likely, a community is divided into different professions, different religious groups, supporters of different political parties, clans, native people and settlers who came from other areas etc. Giving one group access to the firefly technology while others don't have this, could be a reason for envy. Just discussing a possible project with one group might make other people feel being left out. Then these people might react negatively when asked to join discussions in a later phase, even though they might have liked to join in when they were asked right from the start.

There are limits as to what level people are willing to cooperate. The Cambulo users were not interested in sharing one large capacity solar battery between 2 to 4 families, even though that would have reduced both investment costs and running costs significantly. They argued that it would not be possible to measure how much electricity each family would use (and divide costs accordingly). Also they expected problems if the battery would not be taken care of properly, wear out prematurely and a replacement would have to be bought. Only within a family, people were willing to share a battery.

Attitude towards development initiatives: Of course this will be influenced by succes or failure of previous development initiatives in the area. The main question is whether people will take up responsibility for their system, or whether they will expect outside people to solve the problem once some parts are worn out or destroyed.

Attitude towards innovations: To get a new technology introduced, some people have to be the first to try it out. Those first people take risks, of losing money if the technology turns out to be a failure, but such a failure would also affect their status within the community. If general attitude towards innovations is such that no one wants to serve as `guinea pig' in trying out a new technology, this could be an obstacle in getting a user group to pilot the firefly. In Cambulo apparently it wasn't: People who weren't interested in joining themselves, still liked other ones to try. Then if it would turn out profitable, they might join in later and benefit from the experiences gained by these first people.

Attitude towards some people having things others don't have: From a western point of view, it is only normal that people who joined the project, paid the costs and took the efforts, will have electric light while others won't. But within some cultures, this might not be seen as normal at all. People who have it, might be under pressure to share it with family members or community members. From a technical point of view, it just isn't possible to light more than a few, closely spaced houses with one large battery. When battery owners refuse to share the electricity, they go against a social norm and problems might rise. The ones who have no electric light, might see this as enough reason to sabotage the project.

So this attitude will affect chances of a charger, batteries, wiring being stolen or destroyed. Of course there might be many other reasons why firefly materials are destroyed or stolen, see the criminality in our western society.

Who will claim a leading role: For a firefly user group to function properly, there should be capable people doing key tasks (operator, administration of charging fees etc.). When such people are around, it does not necessarily mean that those people will volunteer (or: be chosen) to perform those tasks. The firefly might become a status symbol and people who are powerful within the community, might claim a key role for themselves. This could seriously affect chances of succes.

In Cambulo, it seemed just logic to have at least one woman trained as operator because most of the men left the village at certain times of the year to work in the lowlands. When I suggested that a woman should be trained as operator, people just didn't react. Apparently dealing with the charger was seen as men's work. Maybe women felt less fit for such a technical task and probably they weren't that interested in learning it because they didn't like to carry heavy batteries along steep trails.

Social aspects are not only relevant as to whether or not the firefly could and should be introduced. Also social situation might change because of the firefly. For instance, people might learn to cooperate more easily to solve common problems. One succesful development activity might become the start of another initiative, and yet another. In Cambulo: Started with a coop store, then the firefly came. then my brother Ruud came and made a map of all irrigation canals.

Fig. 3.3: The trail to Cambulo: A 12 km hike to the nearest road. It is unlikely that Cambulo will be connected to the national grid in the foreseeable future.

The economic aspects are more straight-forward: Of course potential users should be able to afford the costs of the firefly system. There is no sense in introducing the firefly if one knows that even in the long run costs will have to be subsidized because potential users are just too poor. Or even worse: If users do pay full costs but at the expense of basic needs like food, housing, health care, school fees.

It is difficult to predict costs of a firefly system in general. Investment costs in money terms depend on:

• Prices of parts and materials. Most important in these are the batteries, cables, switches, lamps (if other than car bulbs) and the penstock pipe.
• Wage level in workshops and the total time it takes them to build a system.
• Costs of repairs. Whether the charger breaks down strongly depends on its quality and whether it is used properly.
• Transport costs.
• If goods are bought on credit: Interest rate.

Running costs in money terms depend on:

• Actual life span of batteries, so: Care in handling batteries, see par. 2.3
• The charging fee the operator gets for his services.

In the Philippines, investment costs were estimated at $ 150 for a charger and $ 75 for a home system (1992 prices). This means that at 10 users per charger, total investment costs would be $ 90 per user.

But there are also costs in terms of labour that depend strongly on local conditions:

• Hauling materials into the community.
• Constructing the weir, canal and preparing the site and repairs of these.
• Time spent on discussing matters and settling conflicts. Time spent on having the charger repaired.
• Carrying batteries to the charger and back.

Not only the costs of the firefly are relevant in this, but also costs of alternative systems, see par. 2.4. A major conclusion from this:

It makes no sense to try to introduce the firefly in an area that is connected to the national grid or will be connected in the foreseeable future.
